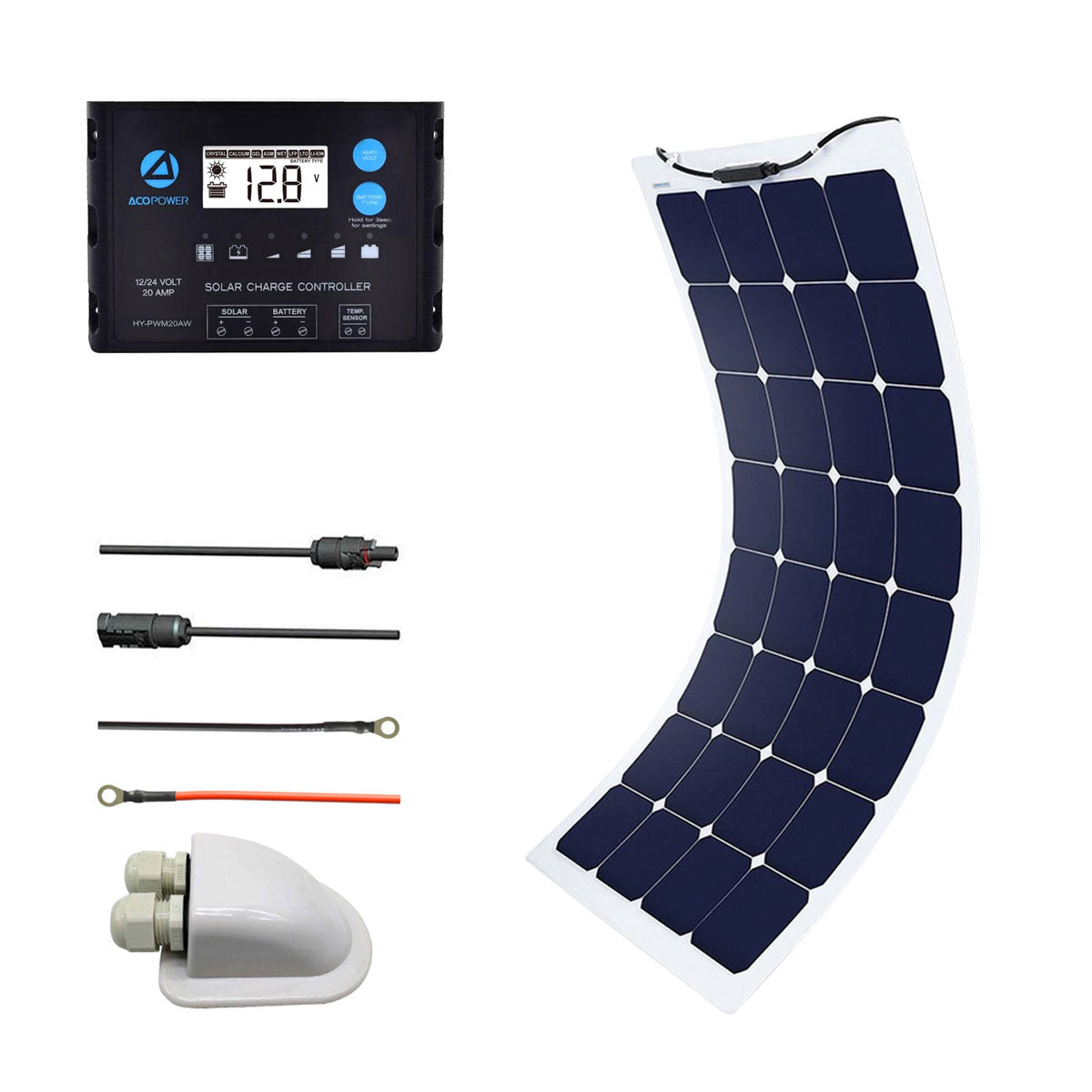

ACOPOWER Flexible Solar Panel Kit + MPPT / PWM Charge Controller

Regular price €306,95
Sale price €306,95 Regular price

Black Friday Sale discount code will be automatically applied once you add the product to the cart, or reach to the checkout page.

SOLAR KIT SIZE
Tax included. Shipping calculated at checkout.

Pickup available at Walnut USA

Usually ready in 24 hours

ACOPOWER Flexible Solar Panel Kit + MPPT / PWM Charge Controller

110W PWM20A
  • Walnut USA

    Pickup available, usually ready in 24 hours

    4120 VALLEY BLVD
    Walnut CA 91789
    United States

    +16265757722

  • ACOPOWER 110W FLEXIBLE SOLAR PANEL
  • Maximum Power at STC (Pmax): 110W
  • Maximum Operating Voltage (Vmp): 17.6V
  • Maximum Operating Current (Imp): 6.25A
  • Dimension: 1070x540x3mm / 44.7x21.3x0.12 in
  • Open-Circuit Voltage (Voc): 20.8V
  • Short-Circuit Current (Isc): 6.9A
  • Operating Temperature: -20ºC to 65ºC
  • Weight: 2.2kg / 4.85 lbs
  • Maximum Power at STC (Pmax): 110W
  • Maximum Operating Voltage (Vmp): 17.6V
  • Maximum Operating Current (Imp): 6.25A
  • Dimension: 1070x540x3mm / 44.7x21.3x0.12 in
  • Open-Circuit Voltage (Voc): 20.8V
  • Short-Circuit Current (Isc): 6.9A
  • Operating Temperature: -20ºC to 65ºC
  • Weight: 2.2kg / 4.85 lbs
  • ACOPOWER 50A MPPT SOLAR CHARGE CONTROLLER
  • Nominal System Voltage: 12v/24v/36v/48v DC Auto
  • Rated Charge Current: 50A
  • Max. PV Open Circuit Voltage: 150V/138V
  • MPP Voltage Range: V(BAT)+2V~108V
  • Working temperature: -25℃~+50℃
  • RS485 Interface: RS485(RJ45)
  • Dimension: 261*216*119mm
  • Grounding: Common negative Design
  • Battery Input Voltage Range: 8V~68V
  • Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
  • Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
  • Storage temperature: -20℃~+70℃
  • Enclosure: IP33
  • Terminals: 16mm2/6AWG
  • Nominal System Voltage: 12v/24v/36v/48v DC Auto
  • Rated Charge Current: 50A
  • Max. PV Open Circuit Voltage: 150V/138V
  • MPP Voltage Range: V(BAT)+2V~108V
  • Working temperature: -25℃~+50℃
  • RS485 Interface: RS485(RJ45)
  • Dimension: 261*216*119mm
  • Grounding: Common negative Design
  • Battery Input Voltage Range: 8V~68V
  • Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
  • Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
  • Storage temperature: -20℃~+70℃
  • Enclosure: IP33
  • Terminals: 16mm2/6AWG
  • ACOPOWER MIDAS 40A MPPT SOLAR CHARGE CONTROLLER
  • Nominal System Voltage: 12/24VDC Auto
  • Rated Charge Current: 40A
  • Max. PV Open Circuit Voltage: 100V (1) 92V (2)
  • MPPT Voltage Range: (Battery Voltage+2V) ~72V
  • Working temperature: -25℃~+50℃
  • Terminals: Up to 6 AWG
  • Dimension: 10x7.28x2.67 in / 255×185×67.8mm
  • Grounding: Common negative
  • Battery Input Voltage Range: 8V~32V
  • Rated charge Power: 520W/12V 1040W/24V
  • RS485 Interface: 5VDC/200mA(RJ45)
  • Storage temperature: -20℃~+70℃
  • Enclosure: IP33
  • Weight: 3.75lbs / 1.7kg
  • Nominal System Voltage: 12/24VDC Auto
  • Rated Charge Current: 40A
  • Max. PV Open Circuit Voltage: 100V (1) 92V (2)
  • MPPT Voltage Range: (Battery Voltage+2V) ~72V
  • Working temperature: -25℃~+50℃
  • Terminals: Up to 6 AWG
  • Dimension: 10x7.28x2.67 in / 255×185×67.8mm
  • Grounding: Common negative
  • Battery Input Voltage Range: 8V~32V
  • Rated charge Power: 520W/12V 1040W/24V
  • RS485 Interface: 5VDC/200mA(RJ45)
  • Storage temperature: -20℃~+70℃
  • Enclosure: IP33
  • Weight: 3.75lbs / 1.7kg
  • ACOPOWER 30A MPPT SOLAR CHARGE CONTROLLER
  • Nominal system voltage: 12/24VDC Auto
  • Battery input voltage range: 8V~32V
  • Max.PV input power: 12V/390W, 24V/780W
  • Working environment temperature: -25℃~+50℃
  • Grounding: Common negative
  • Power Terminals: 6AWG(16mm2)
  • Dimensions: 228x164x55mm
  • Rated charge current: 30A
  • Max.PV open circuit voltage: 100VDC
  • MPP voltage range: V(BAT+2V)~72V
  • Storage temperature range: -35℃~+80℃
  • Communication: RS485
  • Enclosure: IP30
  • Weight: 1.2kg
  • Nominal system voltage: 12/24VDC Auto
  • Battery input voltage range: 8V~32V
  • Max.PV input power: 12V/390W, 24V/780W
  • Working environment temperature: -25℃~+50℃
  • Grounding: Common negative
  • Power Terminals: 6AWG(16mm2)
  • Dimensions: 228x164x55mm
  • Rated charge current: 30A
  • Max.PV open circuit voltage: 100VDC
  • MPP voltage range: V(BAT+2V)~72V
  • Storage temperature range: -35℃~+80℃
  • Communication: RS485
  • Enclosure: IP30
  • Weight: 1.2kg
  • ACOPOWER 20A PWM CHARGE CONTROLLER
  • Nominal Voltage: 12V/24V DC
  • Rated Charge Current: 20A
  • Battery Start Charging Voltage: 3V
  • Operating Temperature: -40°F to 140°F
  • Terminals: Up to 10 AWG
  • Dimensions: 5.59x 3.7x 1.06 inches
  • Grounding: Common Negative
  • Max. PV Input Voltage: 50V
  • Temperature Compensation Coefficient: -24mV/°C
  • Storage Temperature: -40°F to 185°F
  • Enclosure: IP65
  • Weight: 1.1 lbs
  • Nominal Voltage: 12V/24V DC
  • Rated Charge Current: 20A
  • Battery Start Charging Voltage: 3V
  • Operating Temperature: -40°F to 140°F
  • Terminals: Up to 10 AWG
  • Dimensions: 5.59x 3.7x 1.06 inches
  • Grounding: Common Negative
  • Max. PV Input Voltage: 50V
  • Temperature Compensation Coefficient: -24mV/°C
  • Storage Temperature: -40°F to 185°F
  • Enclosure: IP65
  • Weight: 1.1 lbs
  • WARRANTY INFORMATION
  • Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
  • Solar Charge Controllers: The controller itself comes with a 1-year warranty.
  • Accessories: 1-year material warranty
  • Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
  • Solar Charge Controllers: The controller itself comes with a 1-year warranty.
  • Accessories: 1-year material warranty
  • USER MANUAL
